Global manufacturer and exporter of Oxygen/Nitrogen Gas Plant with Latest Cryogenic Technology Stainless Steel Column and fully automatic Air Compressors.

Oxygen Plant for Cylinder Filling

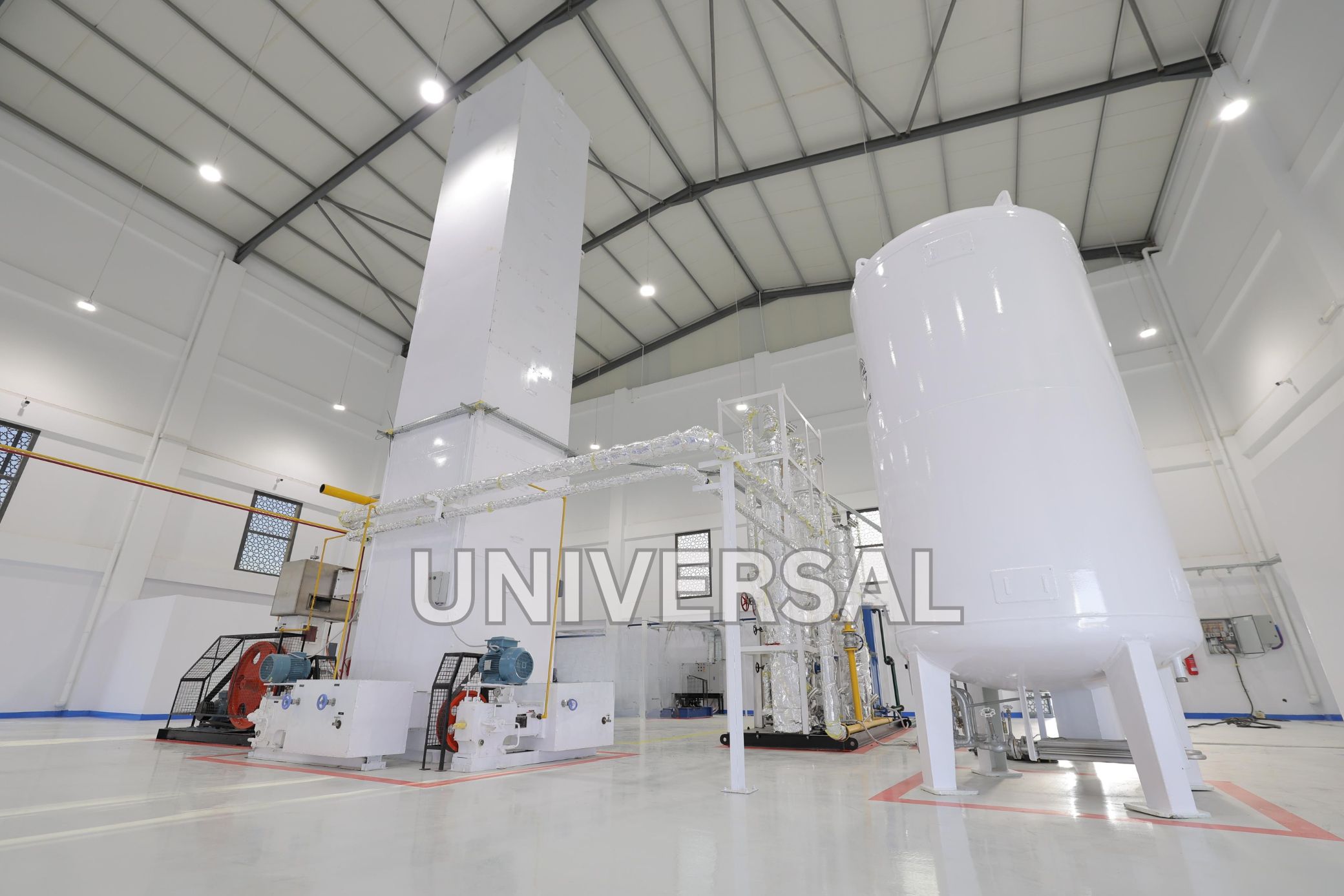

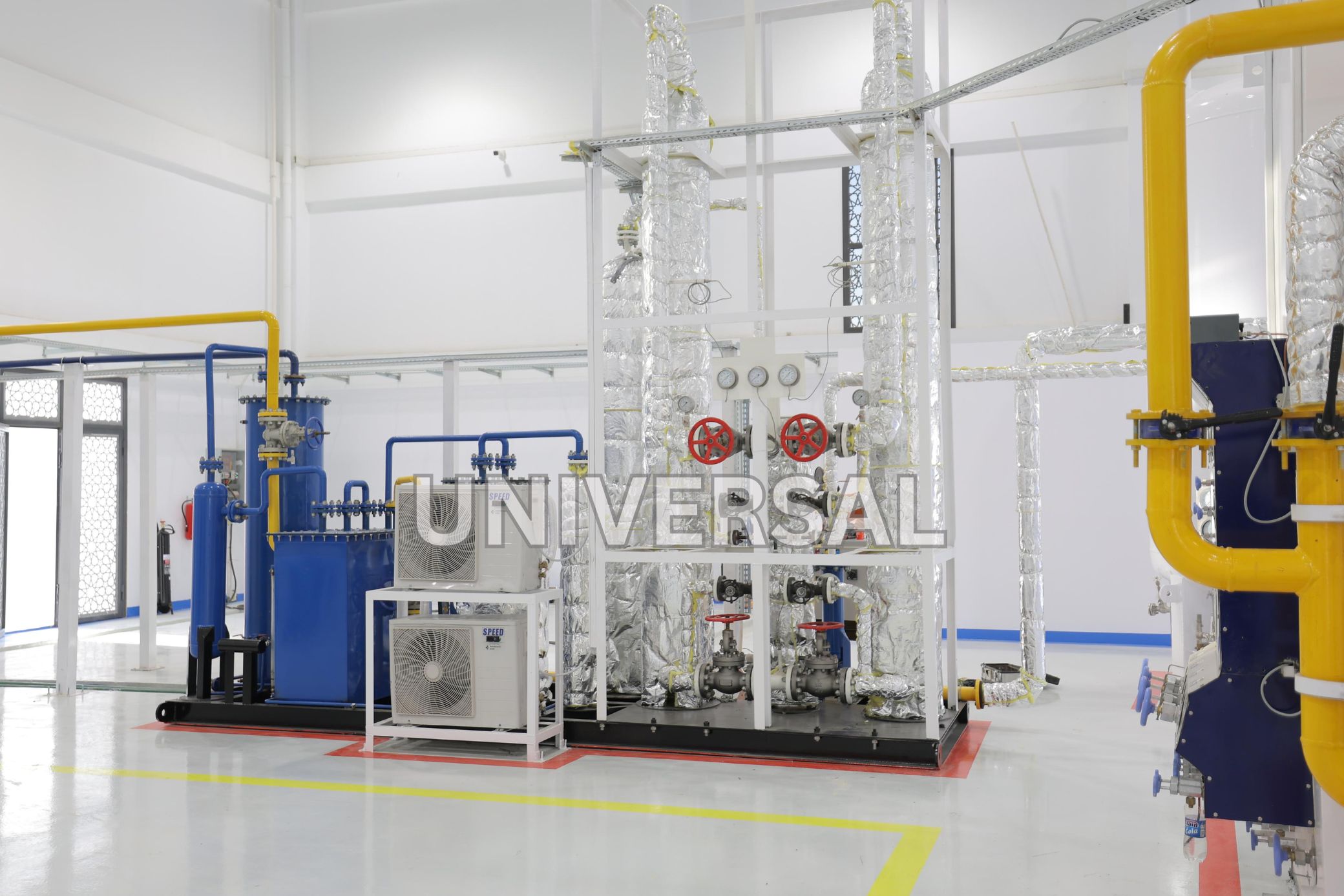

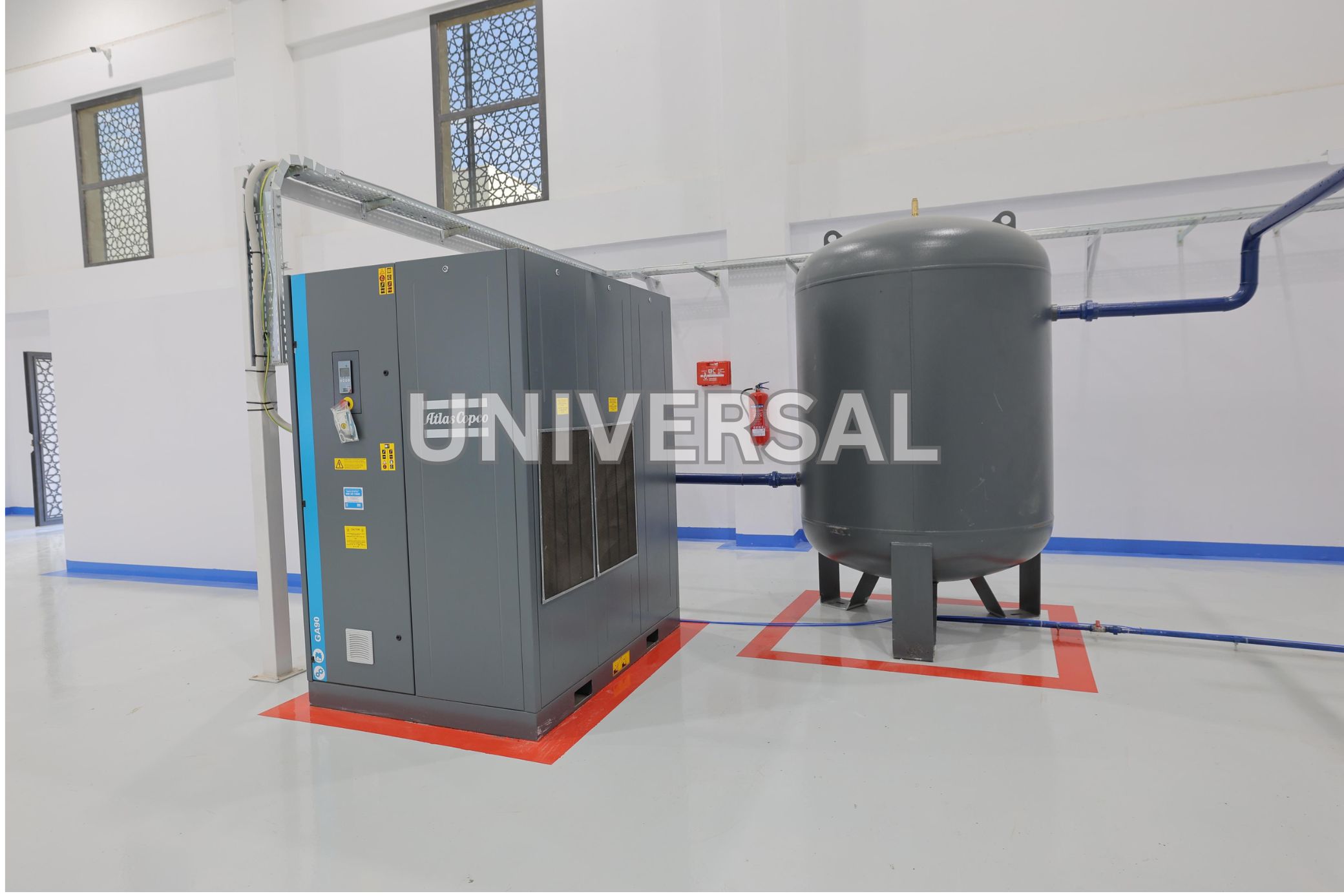

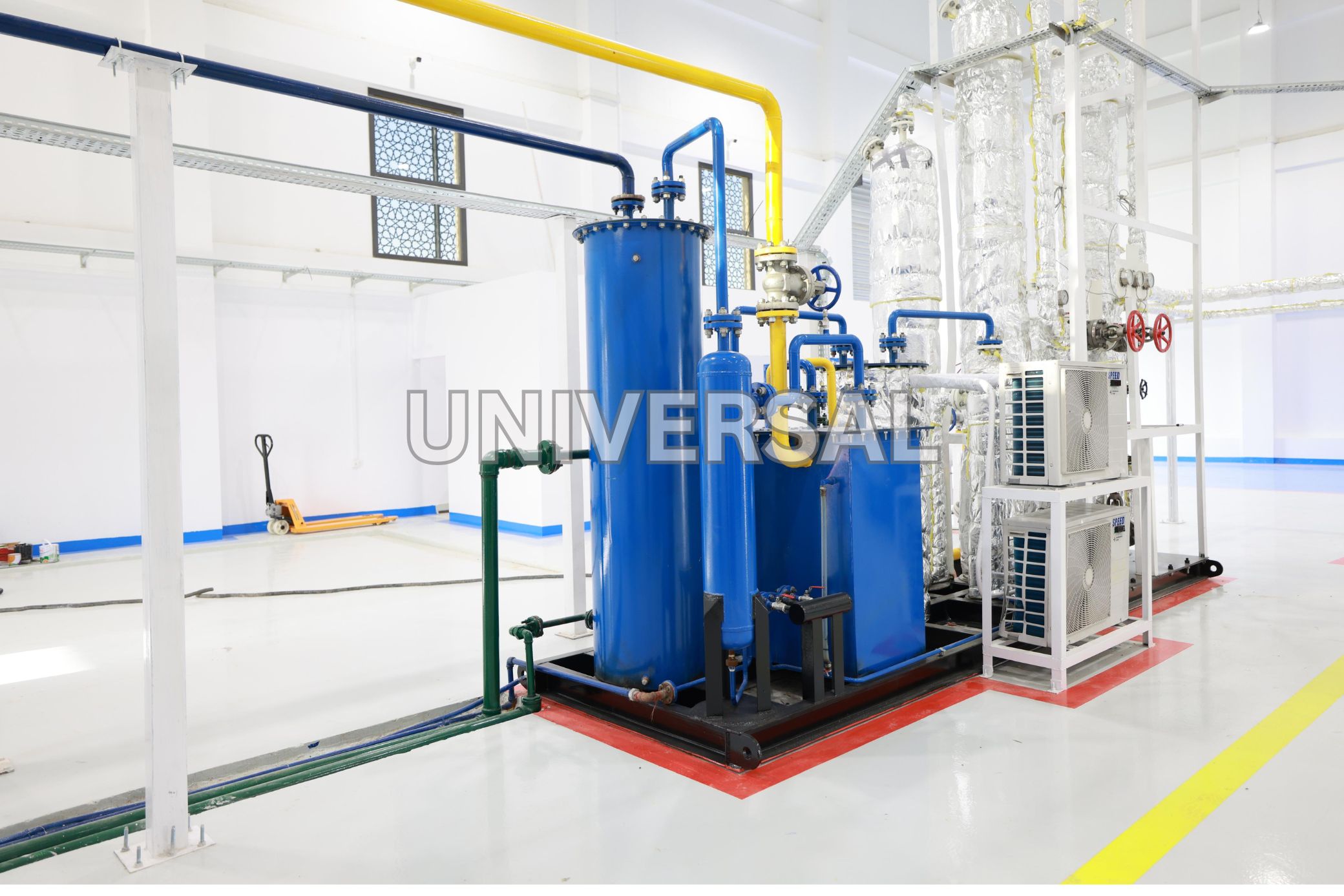

Our Oxygen/Nitrogen Gas Plant recovers oxygen and nitrogen from air simultaneously via Low pressure cryogenic Distillation process. Its design is based on the advanced low pressure technology using rotary screw compressor and turbo expanders. The feed air enters the Molecular Sieve purification system employed to remove the moisture and C02 from the process air. The air is liquefied by cryogenic cooling using latest plate and fin high efficiency heat exchangers and turbo expanders. The liquid air separates into liquid oxygen & liquid nitrogen in the air separation column with final product being stored into liquid tanks at the desired pressure.

SPECIAL FEATURES:

• Fabricated By Skilled Technicians.
• Supervised By Qualified and Experienced Engineers
• Remember Quality Comes With Experience Universal Has Experience of Years
• Proven Performance of Universal Oxygen Plants
• In Extreme Temperatures of Over 55 Degree Centigrade.

• Capacity : 50 to 1,000 m3/hour
• Output : 200 to 4,000 Cylinders/Day
• Purity : OXYGEN - 99.7% & NITROGEN - 99.999%
• Pressure : 150 - 200 Bar

Our plants are designed and developed by using the latest technology in order to make them perform as per the plants of international standard. our company develops and designs automatic and efficient plants. Our cylinder filling oxygen plant is unmatched in the industry.

TECHNICAL SPECIFICATIONS
