Oxygen and Nitrogen Gas Plant

Oxygen and Nitrogen Gas Plant

Capacity: 50 M3/Hour to 1500 M3/Hour

Output: 100 to 6000 Cylinder Filling/Day

Purity: OXYGEN- 99.7% & NITROGEN- 99.99%

Applications: Industrial Uses, Mining, Gold Leaching, Steel Plants

Share On:

Description

We are manufacturing and exporting of Oxygen/Nitrogen Gas Plants, which are technologically very advanced. Our oxygen/nitrogen gas plants are being manufactured and supplied as per the latest technology & design of the Company.

^{Production Process Oxygen Nitrogen Plants}

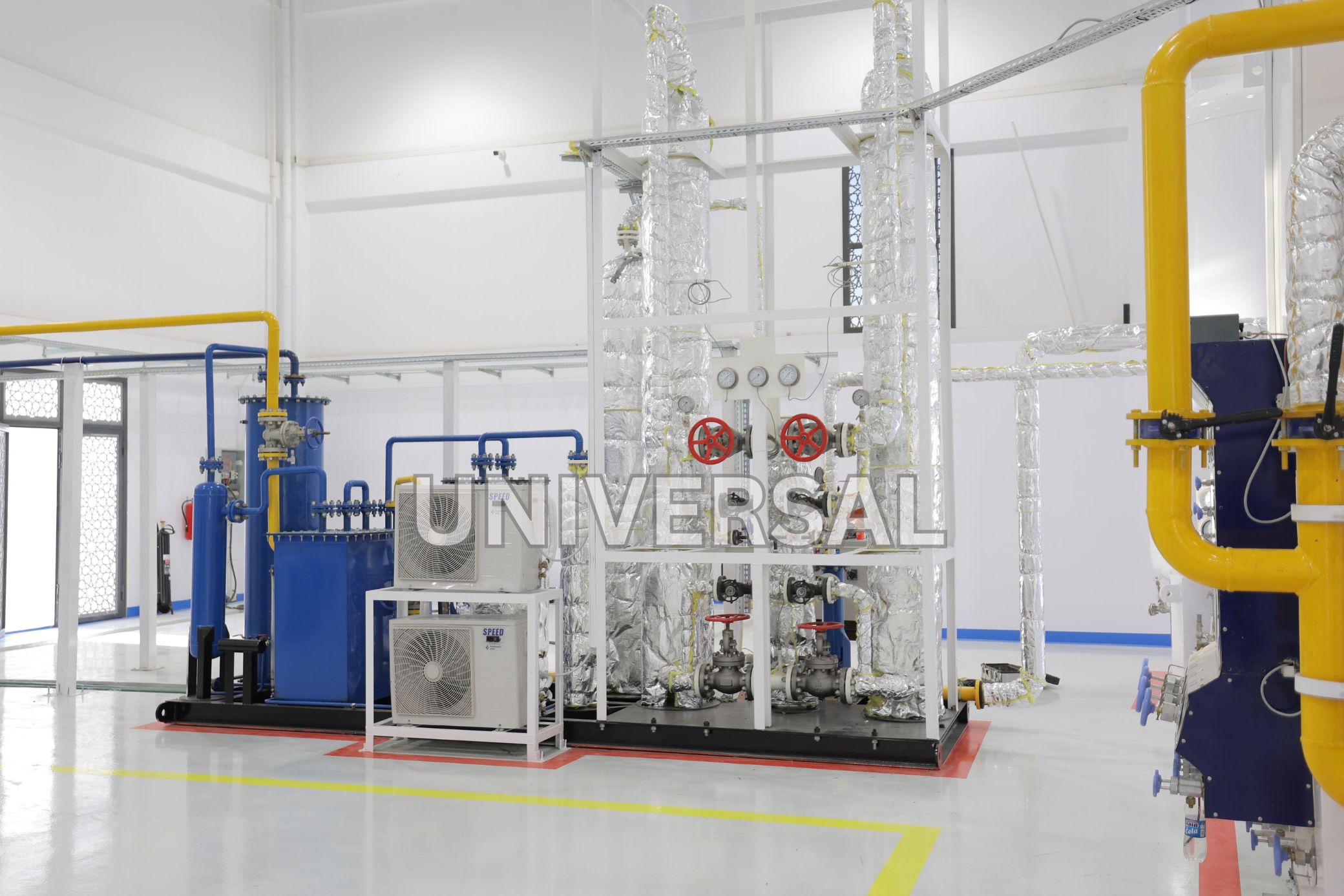

Our Oxygen/Nitrogen Plants recovers oxygen and nitrogen from air simultaneously via Low pressure cryogenic Distillation process. Its design is based on the advanced low pressure technology process of using rotary screw compressor and turbo expanders. The feed air enters the Molecular Sieve purification system employed to remove the moisture and C02 from the process air. The air is liquefied by cryogenic cooling using latest plate and fin high efficiency heat exchangers and turbo expanders. The liquid air separates into liquid oxygen & liquid nitrogen in the air separation column with final product being stored into liquid tanks at the desired pressure.

Special Features:

Fabricated By Skilled Technicians.
Supervised By Qualified and Experienced Engineers
Remember Quality Comes With Experience Universal Has Experience of Years.
Proven Performance of decades for cryogenic Oxygen Nitrogen Plants.

We specializes in Air & Gas Separation Technologies, Manufactures and Proposes a wide range of Oxygen Nitrogen Plants, based on the Cryogenic Technology to produce high purity Oxygen in liquid and gas form both.

Specification

Capacity : 30 to 2000 m3/hour
Output :120 to 8,000 Cylinders/Day
Purity : OXYGEN - 99.7% & NITROGEN -99.99%
Pressure : 150 - 200 Bar

Salient Features

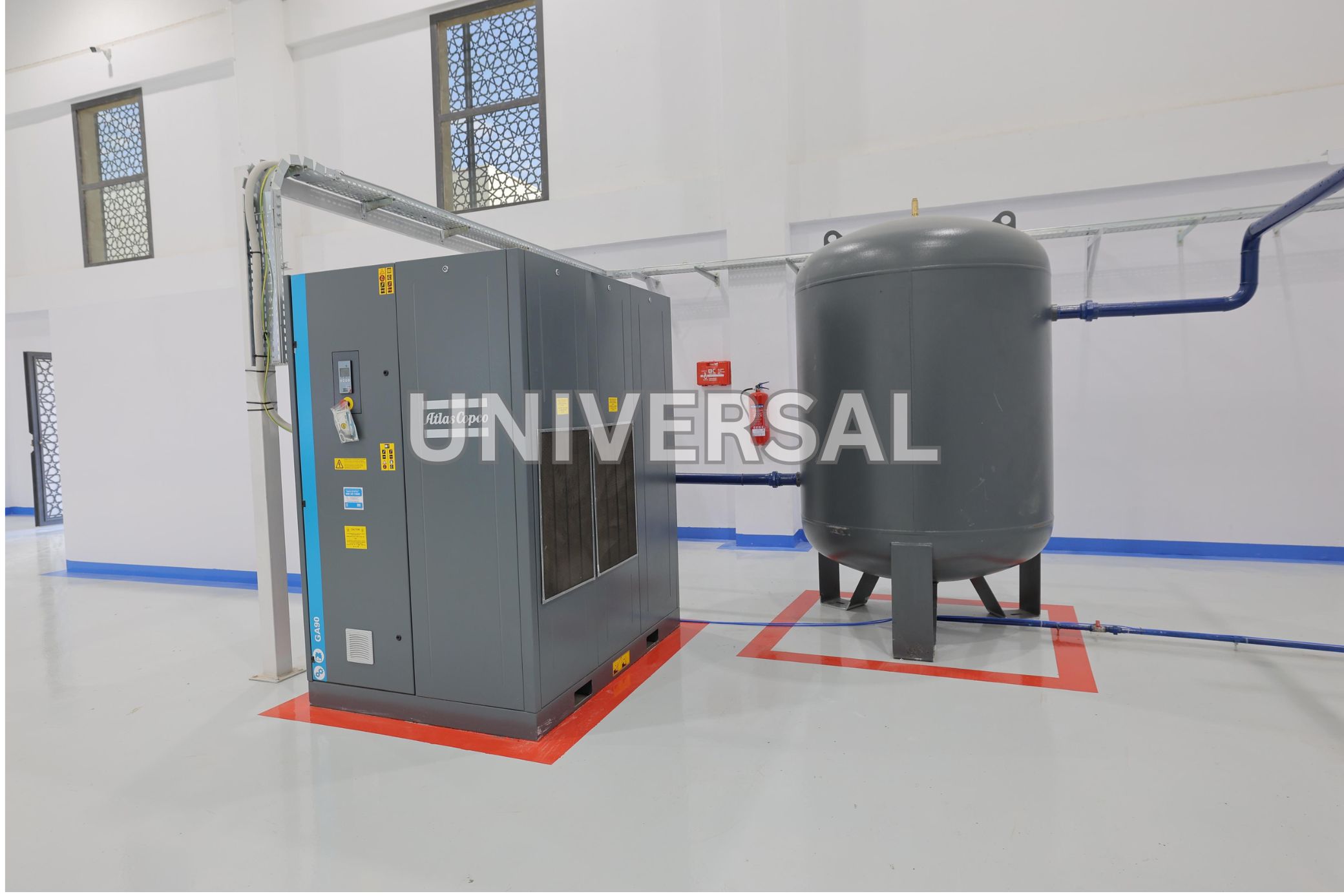

Rotary Automatic Air compressor (Air cooled - Hence Heavy saving of Water)
Skid mounted & easy to install.
100% cryogenic grade stainless steel

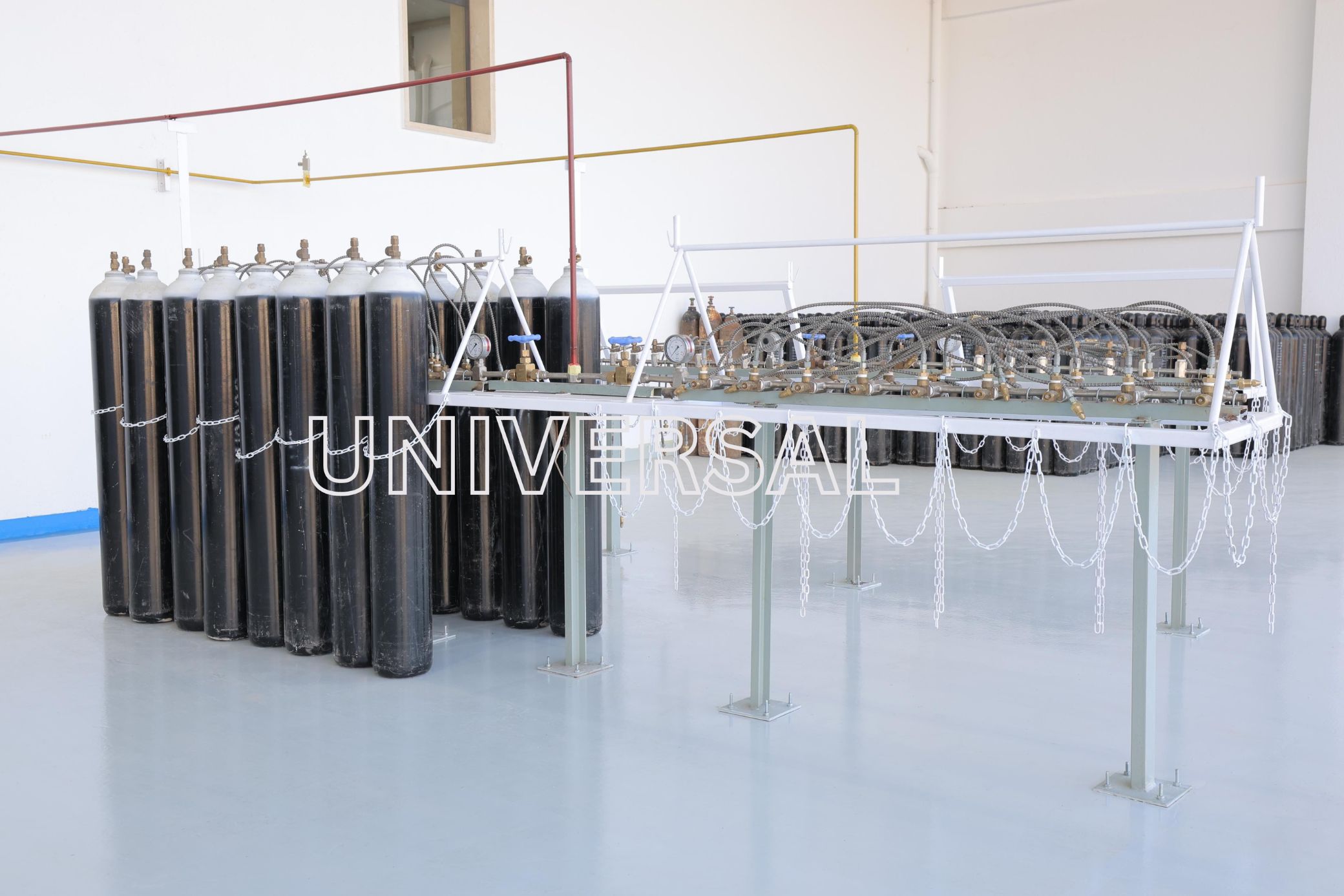

Liquid oxygen pump technology for filling high purity oxygen in cylinders at 150 to 200 Bar.
Quick start system ensures faster production after power tripping.

Technical Specifications:

MODEL	CAPACITY IN M3/HOUR	NUMBER OF CYLINDERS PER DAY	PURITY OF OXYGEN	PRESSURE
UIP-30	30	120	99.7%	150-200 BAR
UIP-50	50	200	99.7%	150-200 BAR
UIP-80	80	300	99.7%	150-200 BAR
UIP-100	100	400	99.7%	150-200 BAR
UIP-130	130	500	99.7%	150-200 BAR
UIP-150	150	600	99.7%	150-200 BAR
UIP-170	170	700	99.7%	150-200 BAR
UIP-300	300	1200	99.7%	150-200 BAR
UIP-400	400	1600	99.7%	150-200 BAR
UIP-500	500	2000	99.7%	150-200 BAR
UIP-600	600	2400	99.7%	150-200 BAR
UIP-1000	1000	4000	99.7%	150-200 BAR
UIP-1500	1500	6000	99.7%	150-200 BAR
