We specializes in advanced Air & Gas Separation Technology, offering a comprehensive range of Oxygen and Nitrogen Plants based on proven Cryogenic Technology.
UNIVERSAL Oxygen Nitrogen Plants are designed to produce Oxygen in both liquid and gaseous forms, ensuring reliable performance for medical and industrial applications. We provide innovative Skid Mounted versions that ensure easy installation, compact design, and reduced commissioning time.
We design, manufacture and supply comprehensive range of Cryogenic Air Separation Plants, Oxygen Production Plants, Liquid Nitrogen Generation Plants, and Acetylene Gas Plants with production capacities ranging from 25 m³/hr to 5,000 m³/hr.
We are manufacturer and exporter of acetylene gas plant for oxy acetylene gas welding and cutting applications. Automatic standard acetylene generation plant is used for producing acetylene wh..
The process for producing acetylene gas involves a chemical reaction between calcium carbide and water. Raw materials used in the reaction are water and calcium carbide, which is popular for commercial production of acetylene. CaC2 (chemical formula for calcium carbide) is made by a mixture of line and coke in a blast furnace. The reaction between water and Cac2 is formulated as CaC2 + 2H2O -> C2H2 + Ca(OH)2 The reaction generates C2H2 (acetylene), calcium hydroxide and heat. Very less moisture content is generated during the reaction.
The process for generation of acetylene gas is described in detail below. We use the standard size of calcium carbide during the testing of acetylene gas plants. However, you can use the CaC2 of varying sizes which will have impact on the performance.
Acetylene is one of the most popular fuel gases, which is used in wide range industrial applications. It is used in combination with oxygen for generating high flame temperatures. Some of the industrial applications are given below:
| S.NO | Description | UIPA-15 | UIPA-25 | UIPA-50 | UIPA-100 | UIPA-200 | |
| 1. | Capacity Cubic Meter per hour | 16 | 27.5 | 55 | 110 | 220 | |
| 2. | RAW MATERIAL REQUIRED | ||||||
| Raw Material | Calcium Carbide (kg/m3 of gas) Main Raw Material -cac2- Carbide quality 5mm to 25 mm specify | 3.3 | 3.3 | 3.3 | 3.3 | 3.3 | |
| Power | Power (average requirement) | 10kw | 12kw | 15kw | 28kw | 40kw | |
| Water | Cooling water make-up (liters/N.cubic meter of gas) | 10 | 10 | 10 | 10 | 10 | |
| 3. | CHEMICAL & CONSUMABLES IN SMALLER QUANTITIES FOR PURIFYING PROCESS | ||||||
| Calcium Chloride (gms/N.cubic meter of gas) (one charge supplied inside LP drier) | 50 | 50 | 50 | 50 | 50 | ||
| Purifying mass (gas plus acid absorbtion mix per cum of gas) | 15gms/N.Cum+4gms | 15gms/N.Cum+4gms | 15gms/N.Cum+4gms | 15gms/N.Cum+4gms | 15gms/N.Cum+4gms | ||
| 4. | CYLINDER FILLING | ||||||
| Acetone in cylinders pumped through acetone pump | As Required | As Required | As Required | As Required | As Required | ||
| Space Required (approx.) | As Required | As Required | As Required | As Required | As Required | ||
| Process Area | 50 Sq.M | 70 Sq.M | 110 Sq.M | 150 Sq.M | 200 Sq.M | ||
| Carbide Area | 60 Sq.M | 75 Sq.M | 112 Sq.M | 175 Sq.M | 250 Sq.M | ||
| Cylinder Filling Area | 30 Sq.M | 40 Sq.M | 60 Sq.M | 100 Sq.M | 150 Sq.M | ||
| Cylinder Storage Area (Depending upon cylinder inventory) | 80 Sq.M | 100 Sq.M | 160 Sq.M | 200 Sq.M | 400 Sq.M | ||
| Lime Slurry disposal area | 80 Sq.M | 100 Sq.M | 180 Sq.M | 250 Sq.M | 300 Sq.M | ||
| Free Space around the plant (on all sides) | 15 M | 16 M | 18.5 M | 20 M | 20 M | ||
| Acetone Godown | 10 Sq.M | 12 Sq.M | 20 Sq.M | 30 Sq.M | 40 Sq.M | ||
Global manufacturer and exporter of Oxygen/Nitrogen Gas Plant with Latest Cryogenic Technology Stainless Steel Column and fully automatic Air Compressors. Oxygen Plant for Cylinder Fillin..
Our plants are designed and developed by using the latest technology in order to make them perform as per the plants of international standard. our company develops and designs automatic and efficient plants. Our cylinder filling oxygen plant is unmatched in the industry.
_1788859263.png)
| NAME OF MODELS | UIP-50 | UIP-100 | UIP-130 | UIP-170 | UIP-200 | UIP-300 | UIP-400 | UIP-500 | UIP-1000 |
|---|---|---|---|---|---|---|---|---|---|
| CAPACITIES (CUBIC METER/HR.) | 50 | 100 | 500 | 700 | 200 | 300 | 400 | 500 | 1000 |
| NO. OF CYLINDERS IN A DAY (OXYGEN/NITROGEN) | 200 | 400 | 500 | 700 | 800 | 1200 | 1600 | 2000 | 4000 |

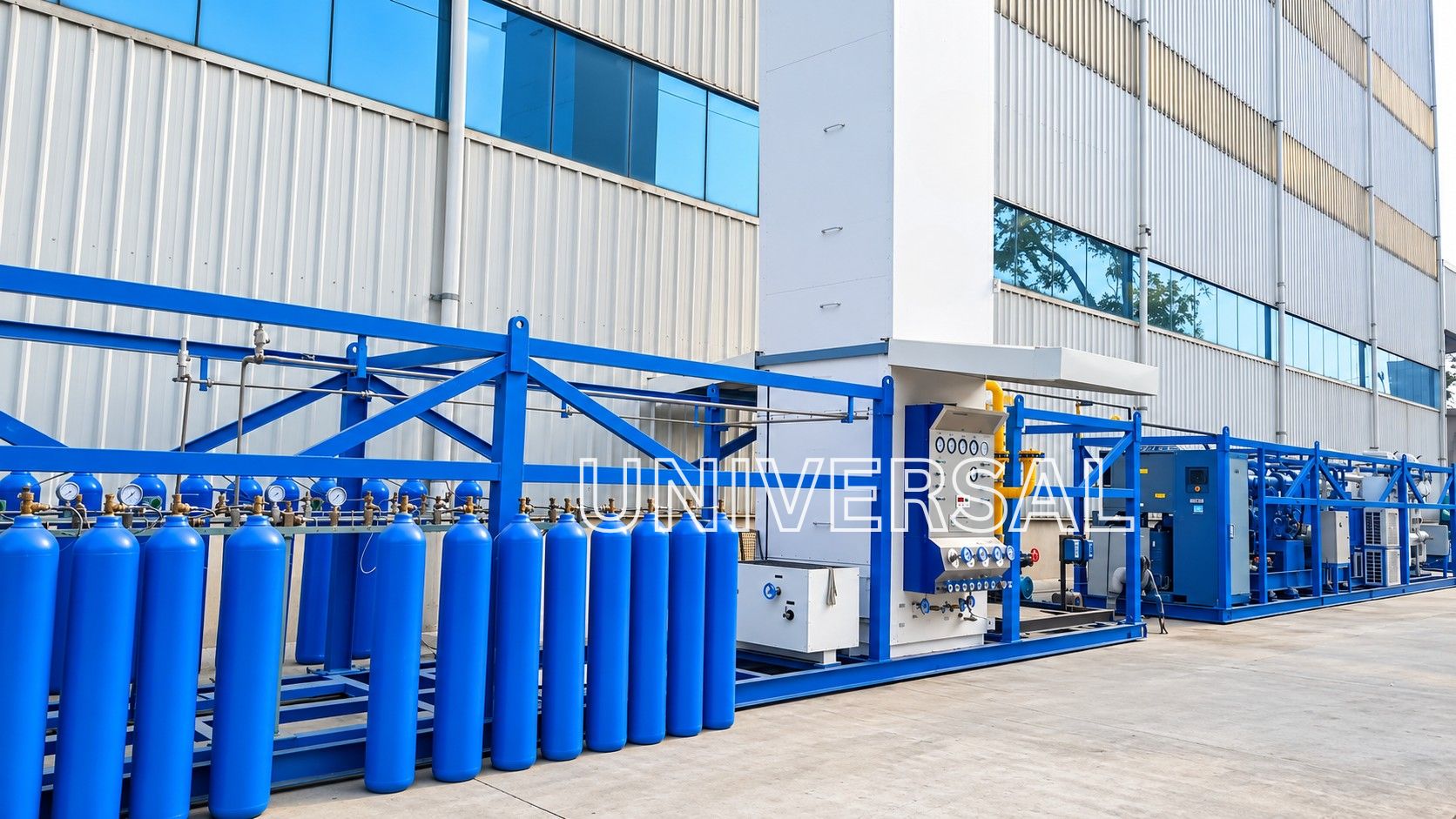

Skid-Mounted Medical Oxygen Plant
We are trusted manufacturer and supplier of compact design portable medical oxygen plant. Our portable skid mounted oxygen generation systems are designed for installation in a single skid mounte..
| MODEL | CAPACITY IN M3/HOUR | NUMBER OF CYLINDERS PER DAY | PURITY OF OXYGEN PRODUCED | PRESSURE OF OXYGEN IN CYLINDERS |
|---|---|---|---|---|
| UIPM-25 | 25 | 100 | 99.7% | 150-200 BAR |
| UIPM-50 | 50 | 200 | 99.7% | 150-200 BAR |
| UIPM-80 | 80 | 300 | 99.7% | 150-200 BAR |
| UIPM-100 | 100 | 400 | 99.7% | 150-200 BAR |
| UIPM-150 | 150 | 600 | 99.7% | 150-200 BAR |
| UIPM-200 | 200 | 800 | 99.7% | 150-200 BAR |
| UIPM-300 | 300 | 1200 | 99.7% | 150-200 BAR |
| UIPM-400 | 400 | 1600 | 99.7% | 150-200 BAR |
| UIPM-500 | 500 | 2000 | 99.7% | 150-200 BAR |

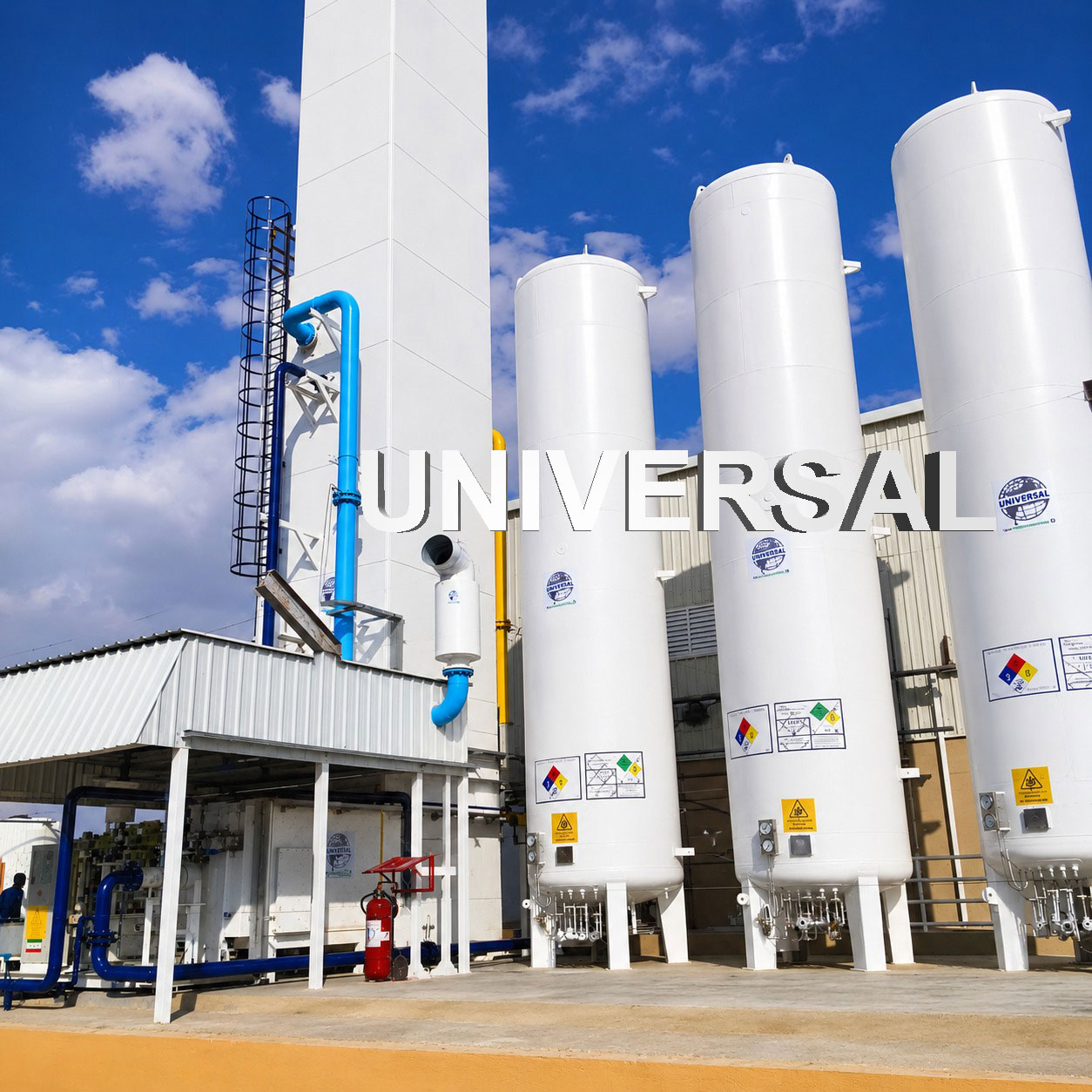

We are leading manufacturer of liquid nitrogen plants that are designed and developed using latest cryogenic air separation technology. Our liquid nitrogen plant generates liquid nitrogen with high pu..
UBTLN Models — Tonnage Plants (400 to 5,000 Litres / Hour) |
|||||||||||
|
MODEL |
PRODUCTION CAPACITY |
PURITY of NITROGEN |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
|
UIPTLN-400 |
400 Litres / Hour |
99.99% to 99.9999% |
|||||||||
|
UIPTLN-600 |
600 Litres / Hour |
99.99% to 99.9999% |
|||||||||
|
UIPTLN-1000 |
1000 Litres / Hour |
99.99% to 99.9999% |
|||||||||
|
UIPTLN-1500 |
1500 Litres / Hour |
99.99% to 99.9999% |
|||||||||
|
UIPTLN-3000 |
3000 Litres / Hour |
99.99% to 99.9999% |
|||||||||
|
UIPTLN-5000 |
5000 Litres / Hour |
99.99% to 99.9999% |
|||||||||

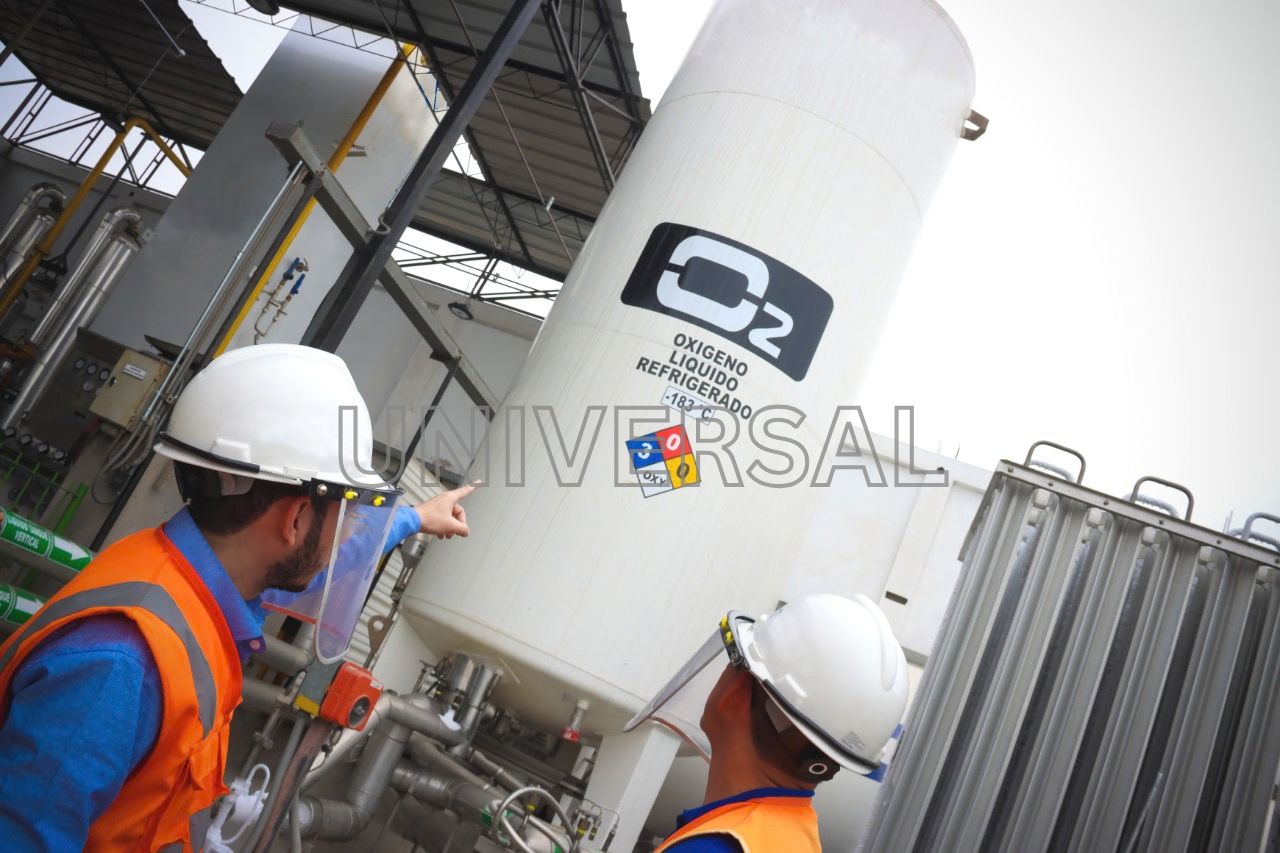

Our cryogenic liquid oxygen nitrogen plants are being manufactured as per the latest cryogenic air separation technology. The technology & performance of air separation plants have been prov..
Universal Plants Successfully Installs Oxygen Plant Factory in Nigeria
Oxygen Plant Successfully Installed and Commissioned in Nigeria We are pleased to share another successful project completed by Universal Plants in Nigeria. Our expert engineering team re..
From engineering and equipment manufacturing to installation, testing, and commissioning, our team supports customers throughout the project. We focus on providing practical solutions that are designed around the customer's required oxygen capacity and application.
This successful installation in Nigeria reflects our experience in delivering oxygen production plant projects internationally
If you are planning to establish your own oxygen production facility, UNIVERSAL PLANTS can help you evaluate your requirements and develop a suitable project solution. Contact our technical engineering team to discuss your oxygen producing factory project setup and get the best commercial proposal today.
_1792057077.jpg)

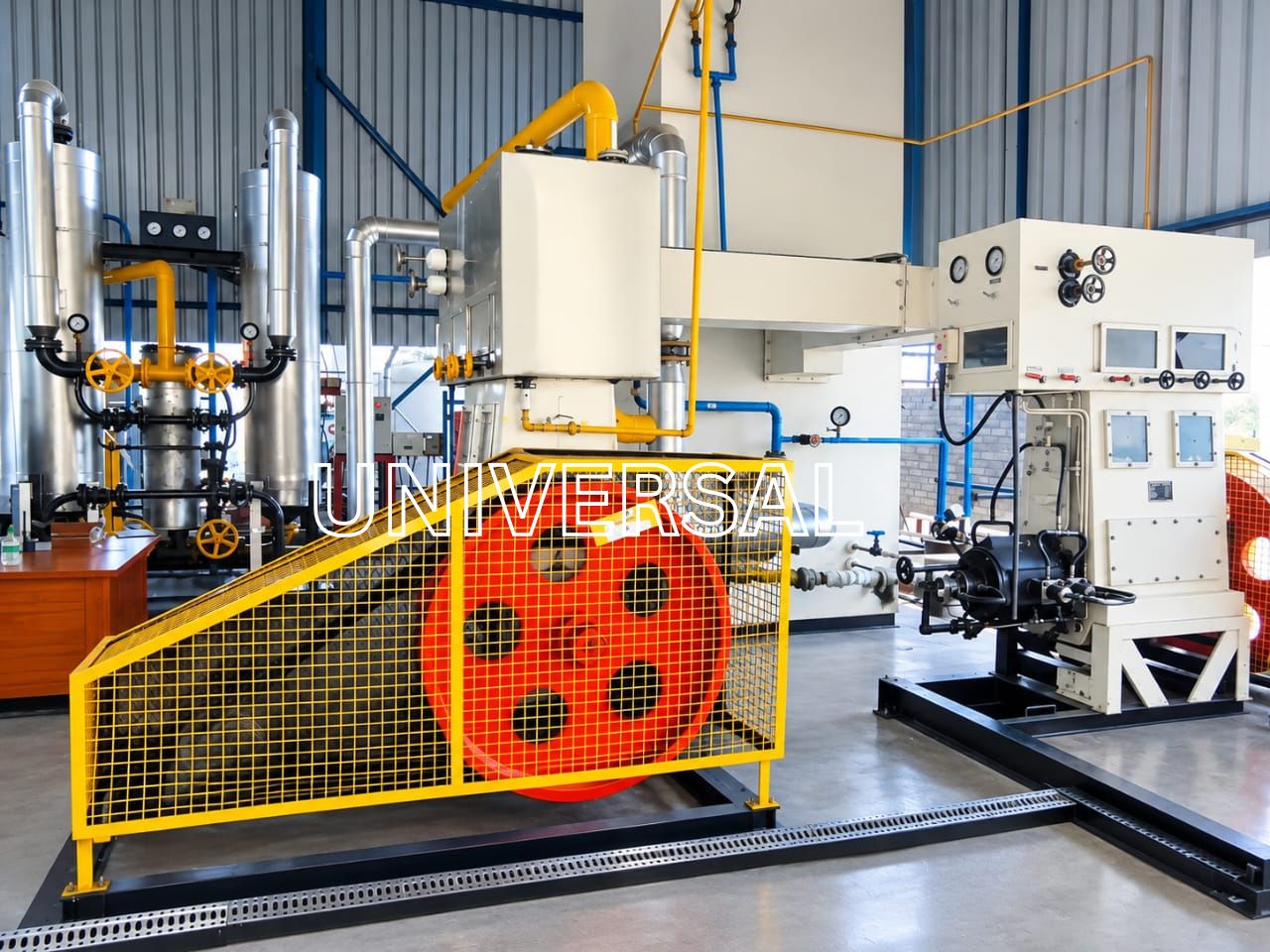

We are manufacturing and exporting of Oxygen/Nitrogen Gas Plants, which are technologically very advanced. Our oxygen/nitrogen gas plants are being manufactured and supplied as per the latest tec..
_1788860404.jpg)
| MODEL | CAPACITY IN M3/HOUR | NUMBER OF CYLINDERS PER DAY | PURITY OF OXYGEN | PRESSURE |
|---|---|---|---|---|
| UIP-30 | 30 | 120 | 99.7% | 150-200 BAR |
| UIP-50 | 50 | 200 | 99.7% | 150-200 BAR |
| UIP-80 | 80 | 300 | 99.7% | 150-200 BAR |
| UIP-100 | 100 | 400 | 99.7% | 150-200 BAR |
| UIP-130 | 130 | 500 | 99.7% | 150-200 BAR |
| UIP-150 | 150 | 600 | 99.7% | 150-200 BAR |
| UIP-170 | 170 | 700 | 99.7% | 150-200 BAR |
| UIP-300 | 300 | 1200 | 99.7% | 150-200 BAR |
| UIP-400 | 400 | 1600 | 99.7% | 150-200 BAR |
| UIP-500 | 500 | 2000 | 99.7% | 150-200 BAR |
| UIP-600 | 600 | 2400 | 99.7% | 150-200 BAR |
| UIP-1000 | 1000 | 4000 | 99.7% | 150-200 BAR |
| UIP-1500 | 1500 | 6000 | 99.7% | 150-200 BAR |

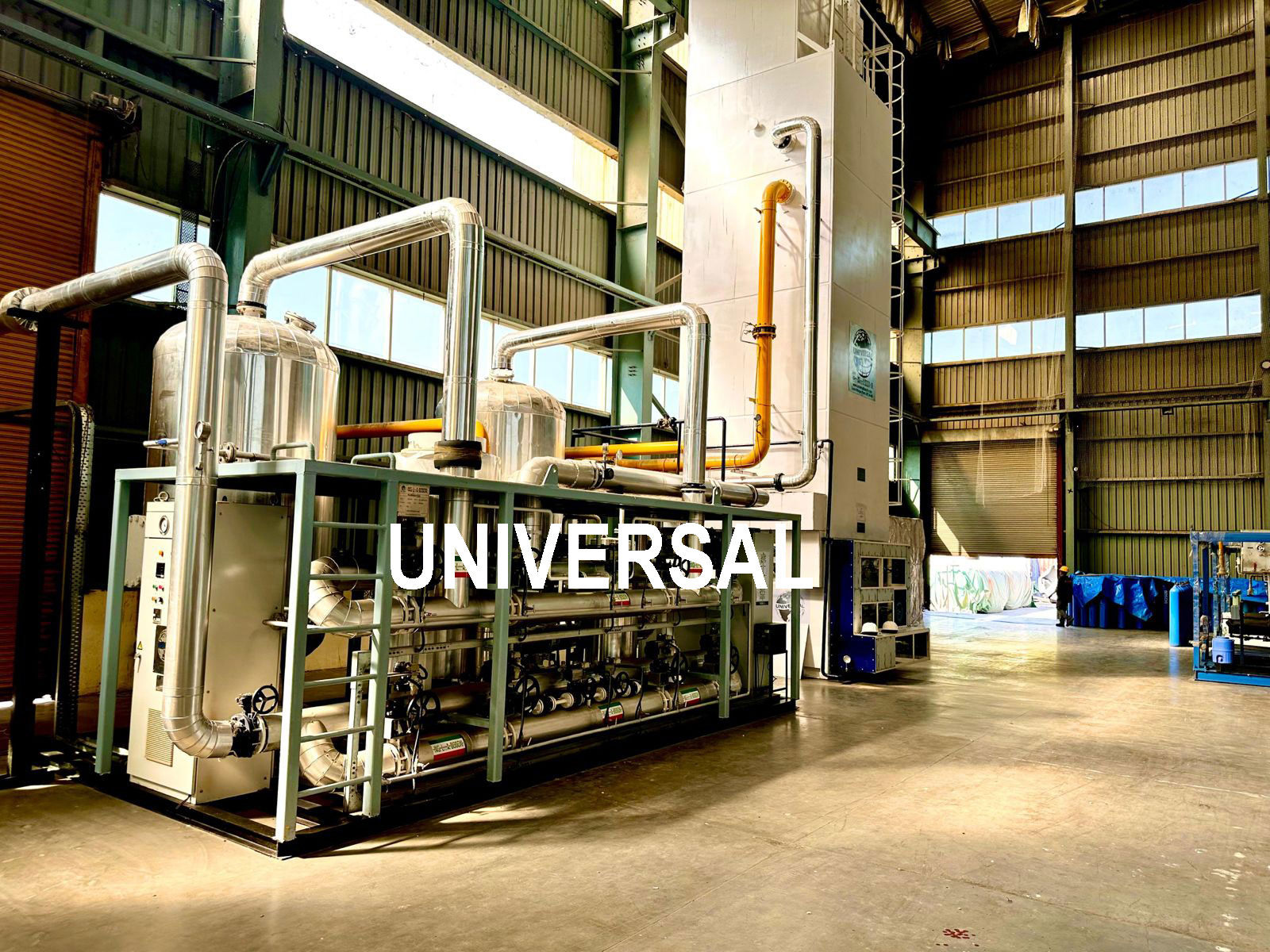

Cryogenic Air Separation Plant
Our Tonnage Air Separation Units (ASUs) are engineered for large-scale production of high-purity liquid oxygen and liquid nitrogen for medical, industrial, and commercial applications. Using advanced ..
Oil & Gas Industry – Enhanced combustion, inerting, purging, and safety applications
Steel Plants & Steel Industries – Oxygen for blast furnaces, EAFs, and cutting; nitrogen for inerting and cooling
Mining Industry – Oxygen for leaching processes and nitrogen for inert atmosphere applications
Process Industries – Continuous and batch processing requiring controlled atmospheres
Fish Freezing Industry – Rapid freezing and preservation using liquid nitrogen
Seafood Freezing Industry – IQF (Individually Quick Frozen) processing and cold‑chain support
| TECHNICAL SPECIFICATION TABLE of LIQUID OXYGEN/NITROGEN ARGON TONNAGE PLANTS | ||||
|---|---|---|---|---|
|
Model |
Capacity in M3/Hr |
Capacity in Tons Per Day |
Capacity in Liter /Hour |
Purity |
| UIPTL-300 | 300 M3/HR | 10 TPD | O2- 354 L/Hr N2- 435 L/Hr |
O2-99.7% N2-99.99% |
| UIPTL-400 | 400 M3/HR | 12.8 TPD | O2- 470 L/Hr N2- 580 L/Hr |
O2-99.7% N2-99.99% |
| UIPTL-500 | 500 M3/HR | 16 TPD | O2- 590 L/Hr N2- 730 L/Hr |
O2-99.7% N2-99.99% |
| UIPTL-1000 | 1000 M3/HR | 32 TPD | O2- 1180 L/Hr N2- 1440 L/Hr |
O2-99.7% N2-99.99% |
| UIPTL-1500-45 | 1500 M3/HR | 48 TPD | O2- 1500 M3/Hr N2- 1500 M3/Hr Argon- 45 M3/Hr |
O2-99.7% N2-99.99% Ar-99.9999% |
| UIPTL-2000-60 | 2000 M3/HR | 64 TPD | O2- 2000 M3/Hr N2- 2000 M3/Hr Argon- 60 M3/Hr |
O2-99.7% N2-99.99% Ar-99.9999% |
| UIPTL-3000-90 | 3000 M3/HR | 96 TPD | O2- 3000 M3/Hr N2- 3000 M3/Hr Argon-90 M3/Hr |
O2-99.7% N2-99.99% Ar-99.9999% |
Oxygen Plant Installed in Haiti
UNIVERSAL PLANTS Successfully Installed Oxygen Plant in Haiti. Setup onsite Liquid & Gaseous Oxygen Production Plant with Liquid Storage Tanks and Oxygen Cylinder Filling Station. Are Iif You..
Cryogenic Liquid Oxygen Liquid Nitrogen Plant in Mexico
We offers advanced Liquid Oxygen (LOX) and Liquid Nitrogen (LIN) plants with capacities ranging from 50 m³/hr. to 5000 m³/hr. Our fully automated cryogenic liquid oxygen nitrogen plants are ..
Liquid Oxygen Nitrogen Plant Setup in Venezuela
We successfully installed and commissioned an On-Site Liquid Oxygen and Nitrogen Production Plant in Venezuela, South America, complete with a cryogenic liquid storage tank filling system. The project..
Liquid Oxygen Nitrogen Plant in Germany
Our company specializes in globally recognized manufacturer and exporter of Liquid Oxygen (LOX) Plants, Liquid Nitrogen (LIN) Plants, and Acetylene Plants, delivering advanced Cryogenic..
We support clients across Germany in setting up medical and industrial liquid oxygen and nitrogen gas manufacturing facilities.
